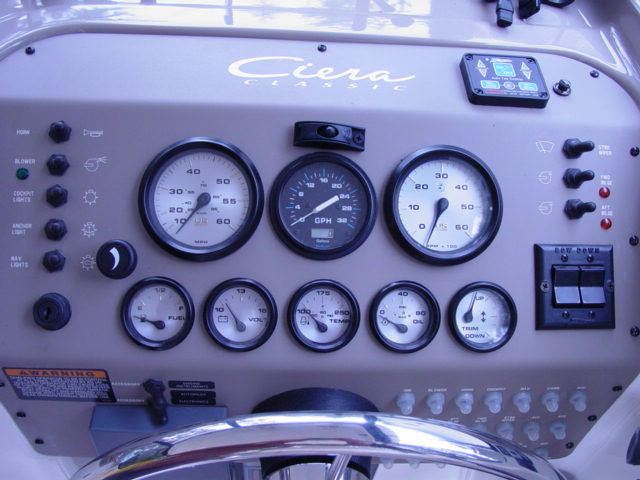

Floscan, outdrive
trim indicator,
Bennett auto trim tabs,
floscan zeroing safety
switch
RL70 radar,
KVH1000 compass,
L770RC+ display
Auto Bennett Trim

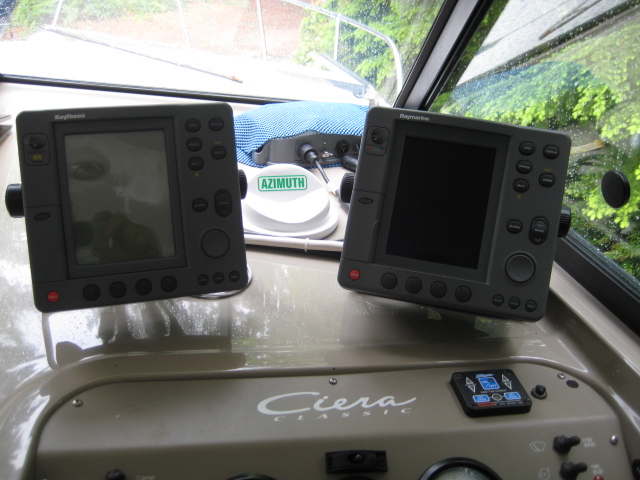

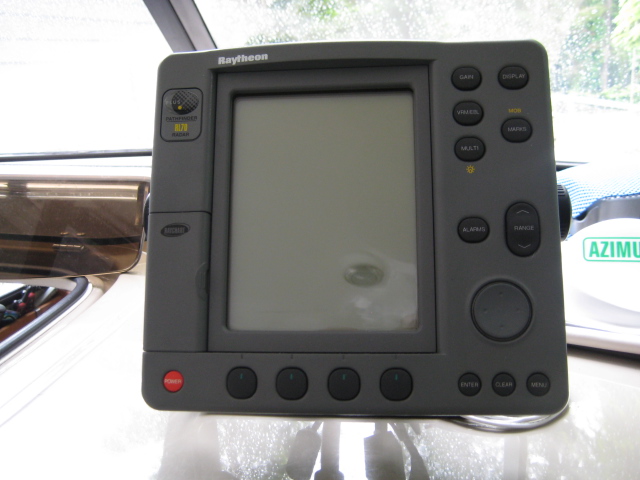

Raytheon RL70
pathfinder radar
Standard Horizon
GX1500 VHF+ w/DSC

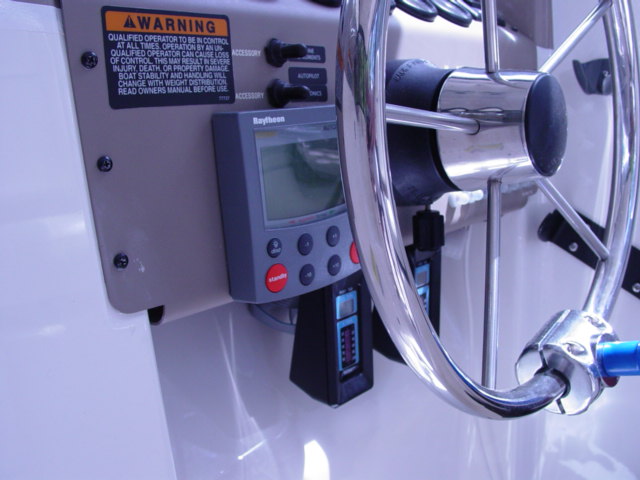

Raytheon ST5000+
auto pilot

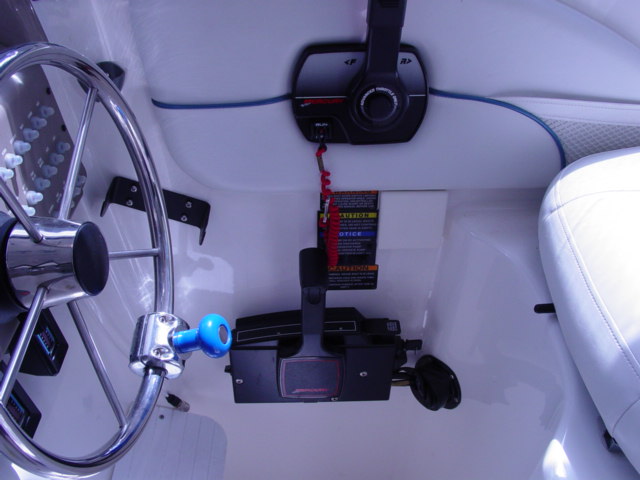

Outboard electric start,
throttle and shift @ helm

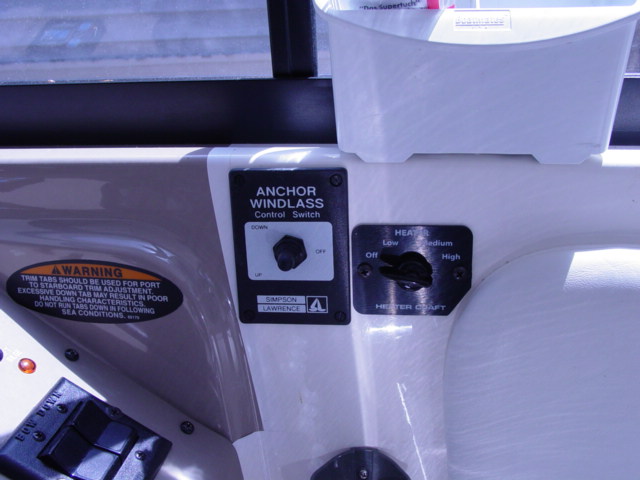

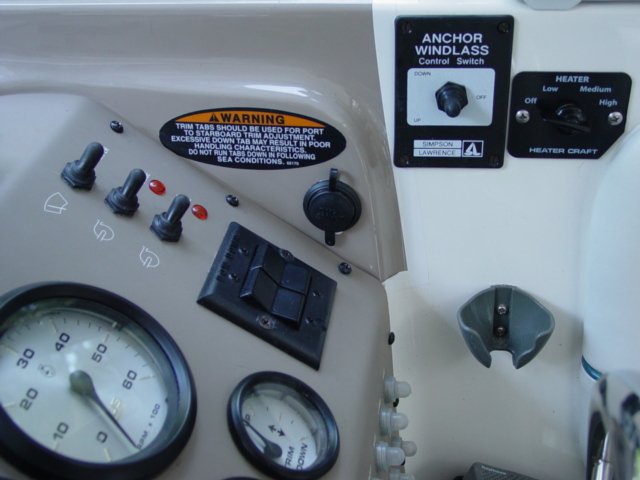

cockpit heat
and Windlass control

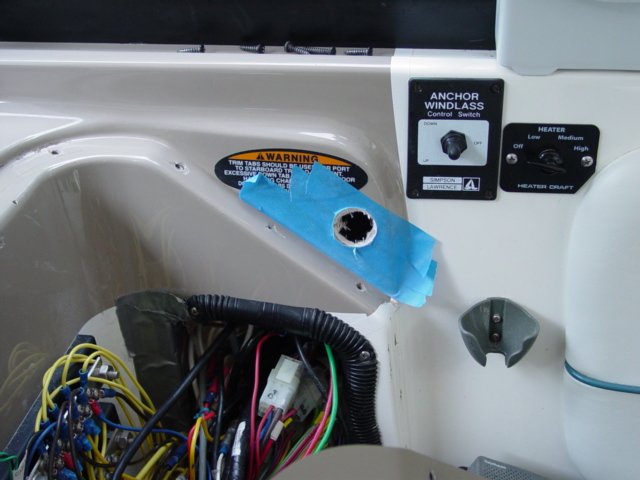

Cut hole for 12v outlet
Completed 12v pwr pt

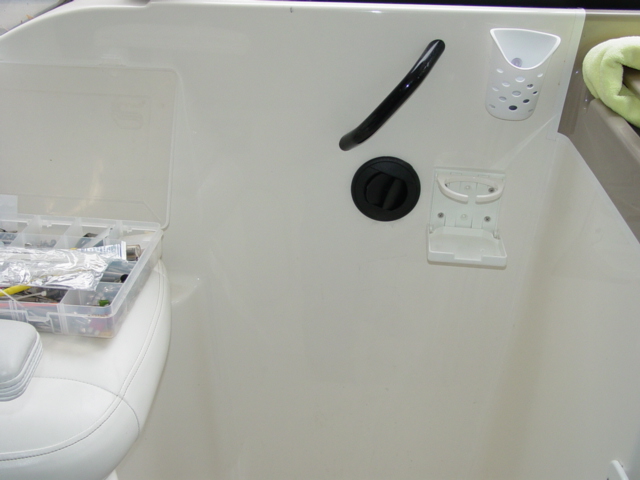

HeaterCraft Register installed
with additional cup holder
HeaterCraft outlet @ helm

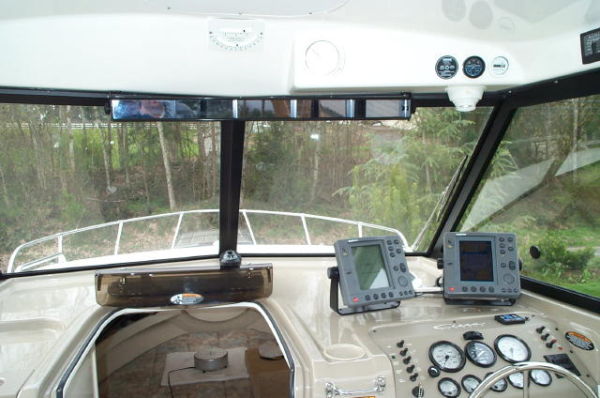

wide angle of helm,
Raytheon RL70 Pathfinder
radar, L770RC+ fishfinder,
rearview mirror
%20(Small).jpg)
upper helm w/halogen
adjustable light above helm

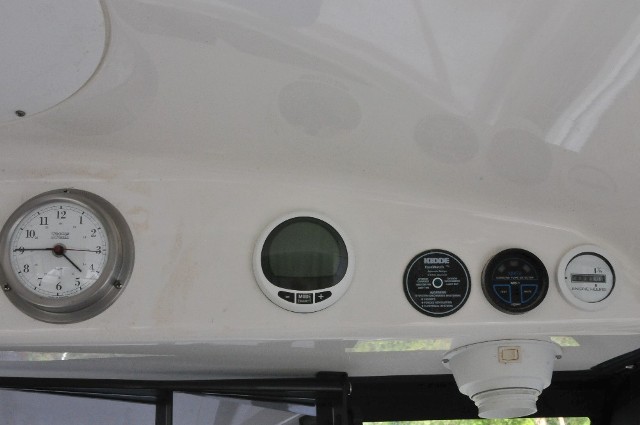

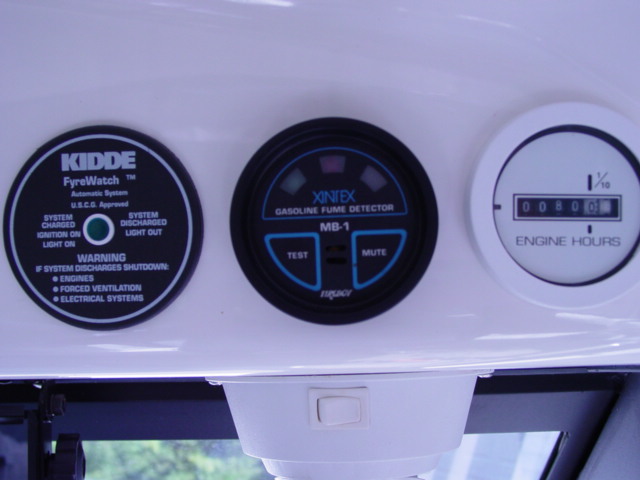

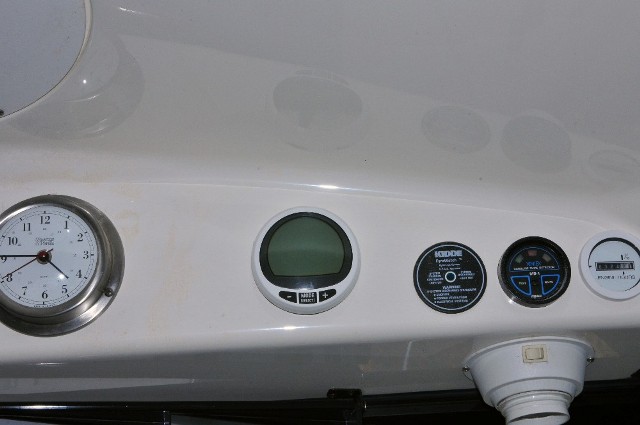

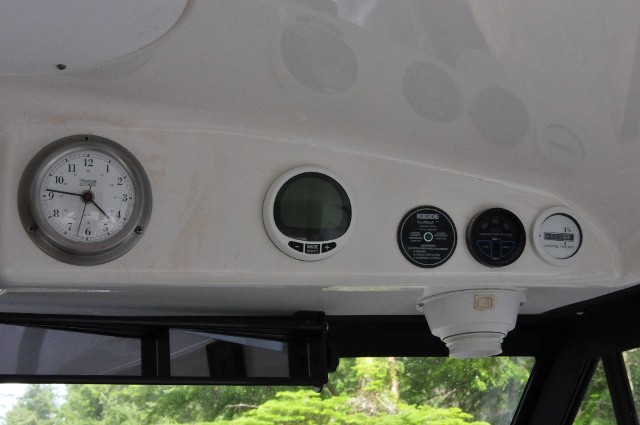

Kiddie Fryewatch,
Xintex floscan, hour meter

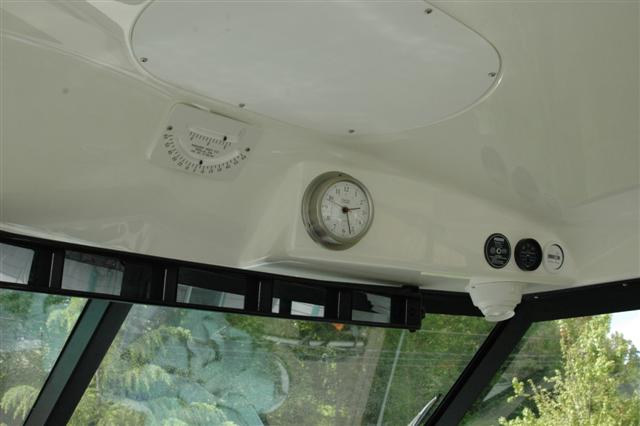

Weems&Plath Clock
incline gauges and rearview
mirror

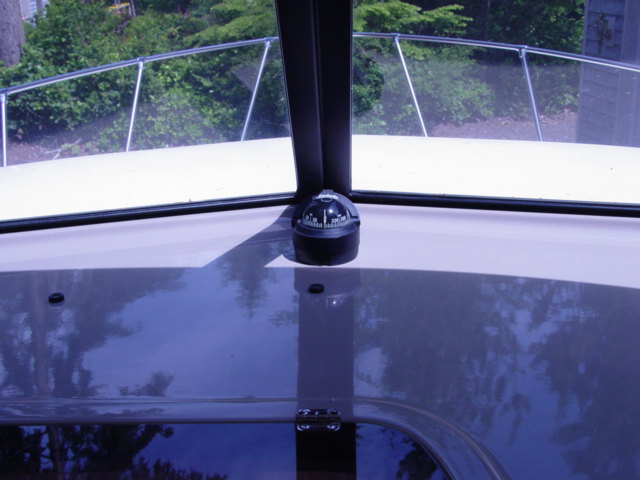

Richie Magnetic
compass backup

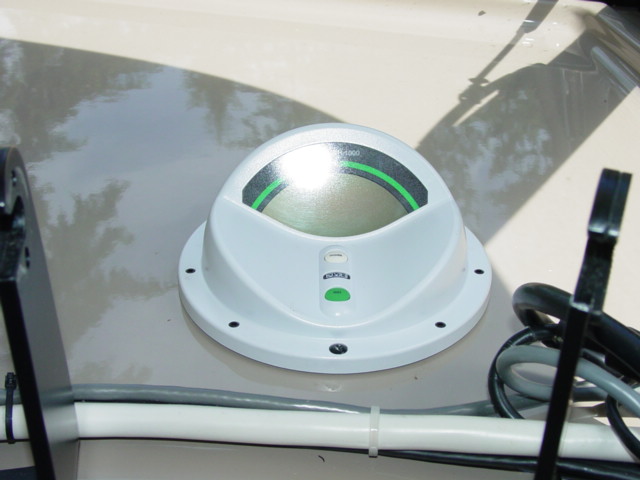

KVH 1000 electronic
digital compass

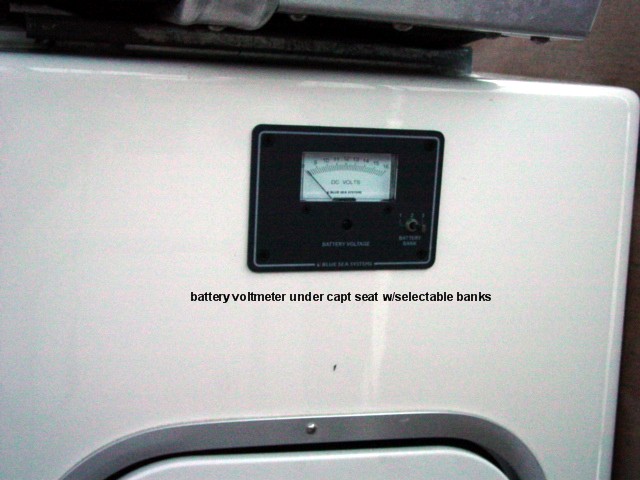

Blue Sea battery
bank monitor

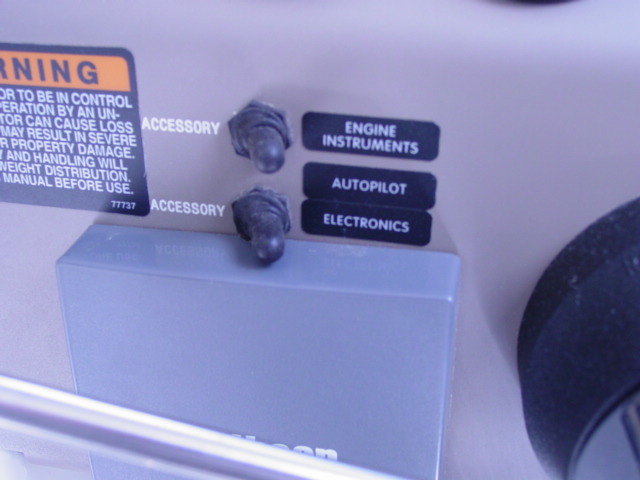

Electronic switch override
control at helm

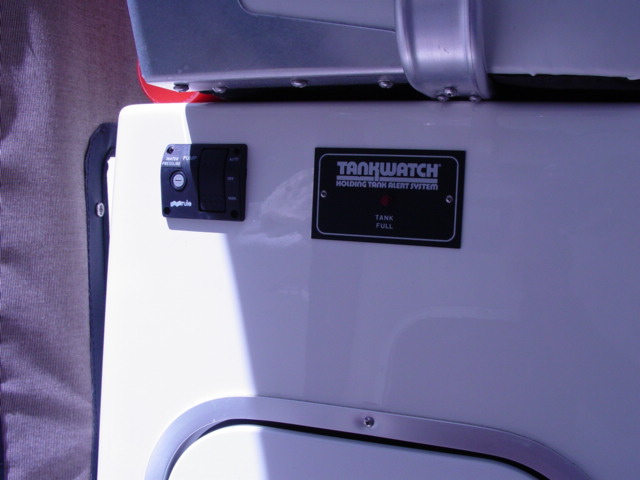

holding tank watch, water
washdown w/selectable
fresh or saltwater

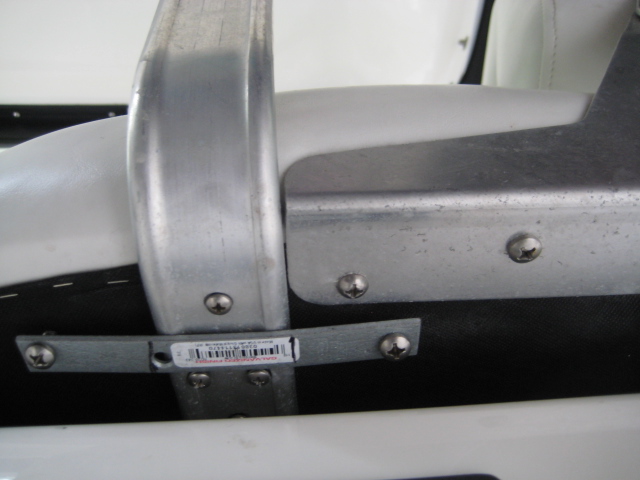

seat arm rest attachment

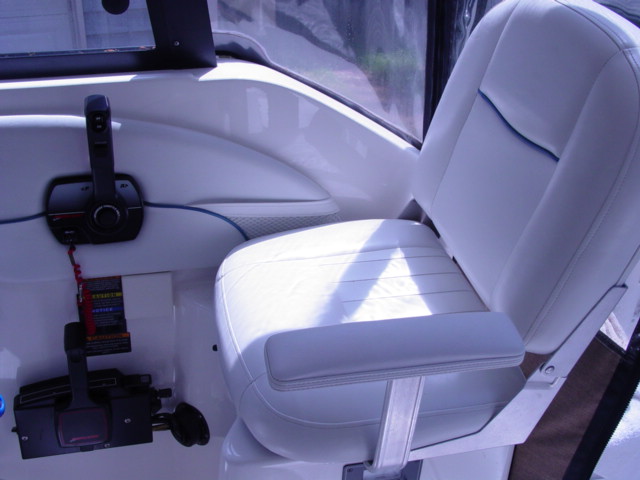

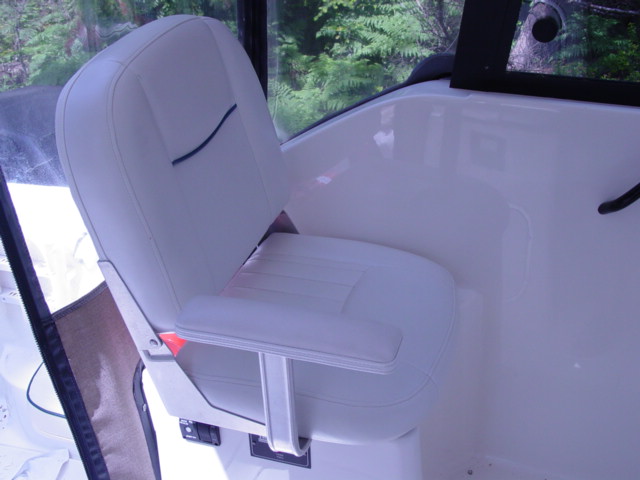

Seat arm rests/seat slides
arm rests
Perko MBSS under
Helm seat

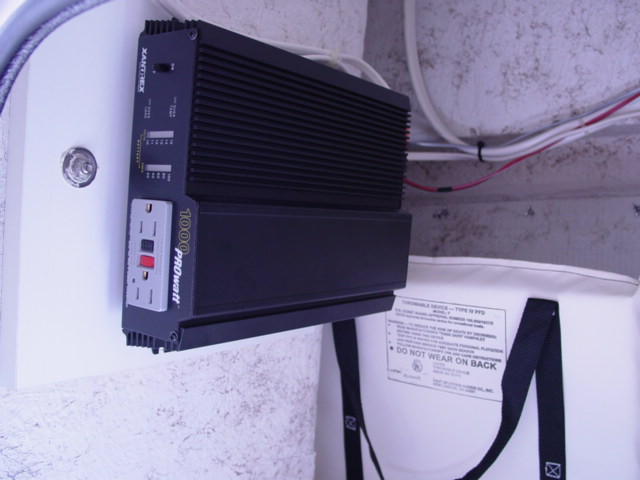

Xantrex 1000 watt inverter
under pax seat runs all 110v

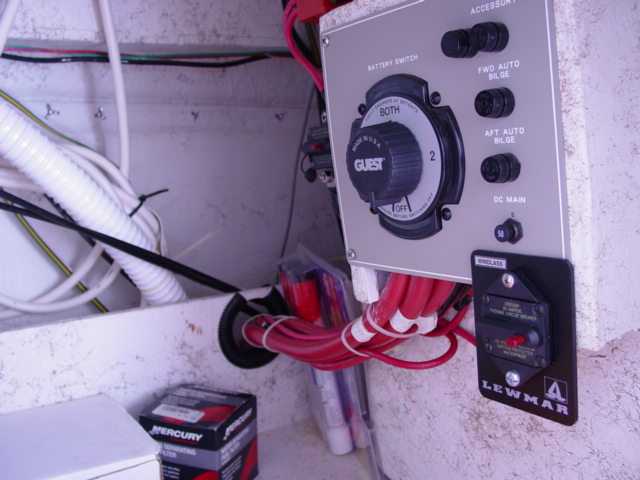

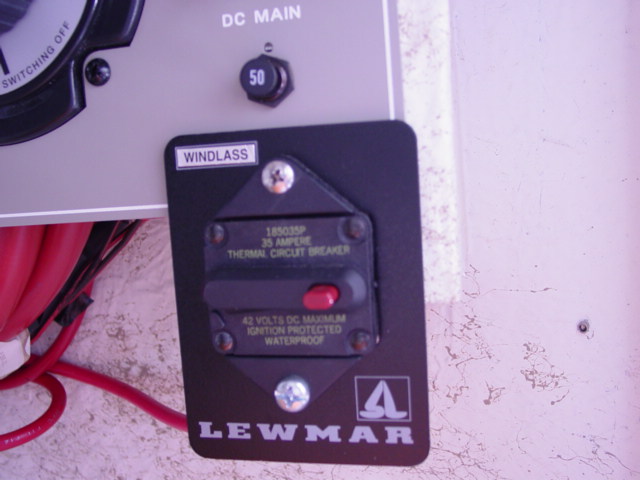

Lewmar anchor windlass
breaker next to
MBSS

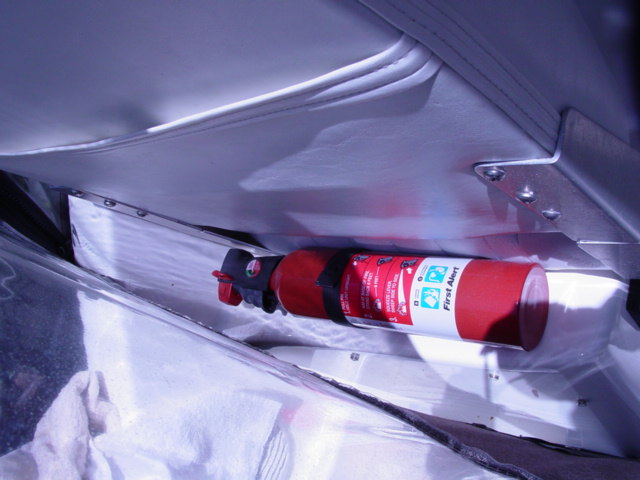

extra extinguisher
behind port seat

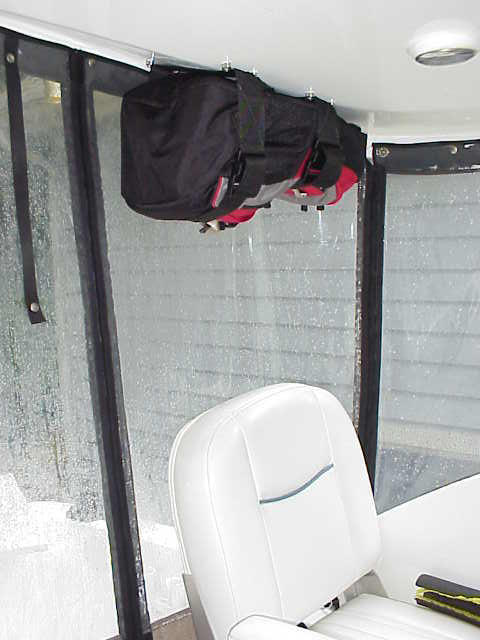

Ditch bag installed
above pax seat

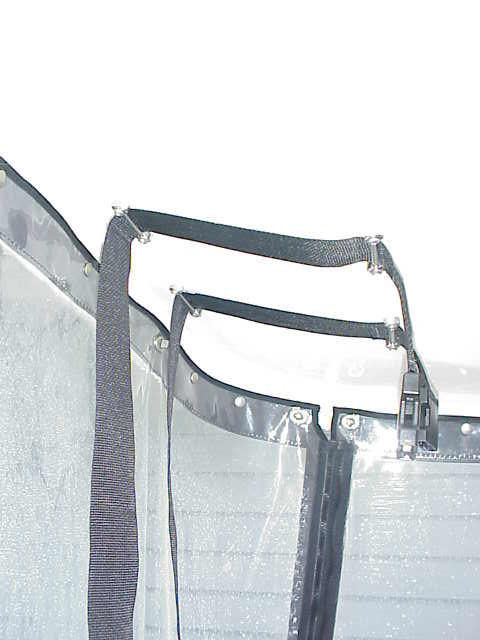

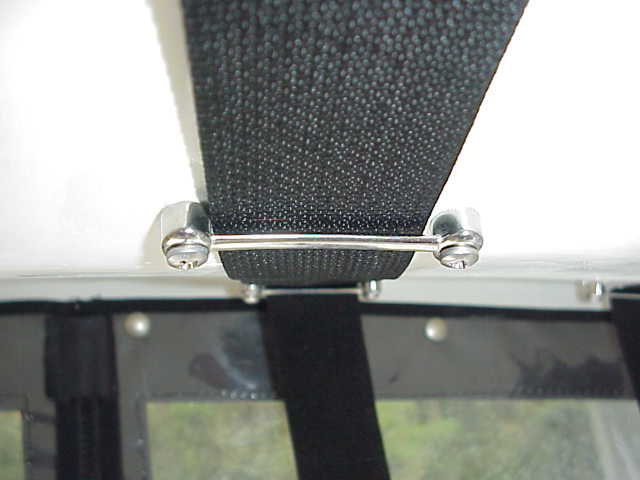

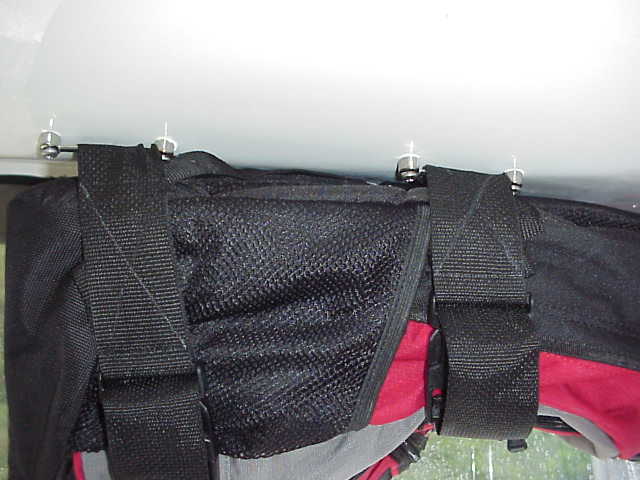

2" Web straps w/
footman loops
Close up of completed
install

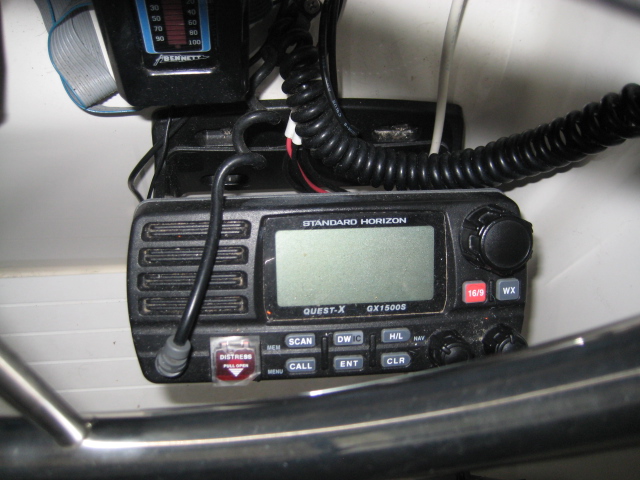

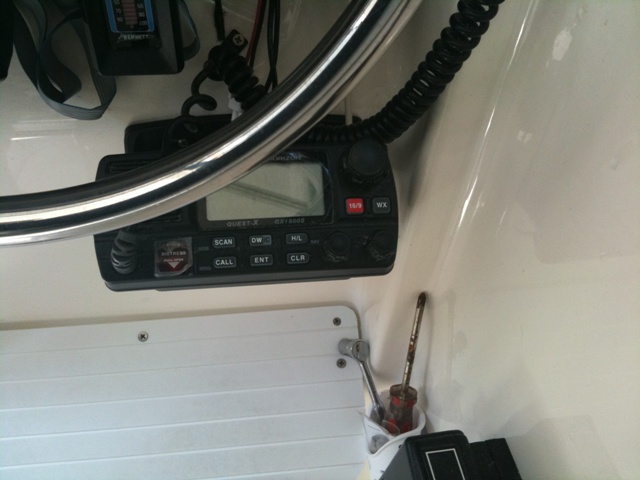

Standard Horizon VHF
DSC Class D
MercMonitor install

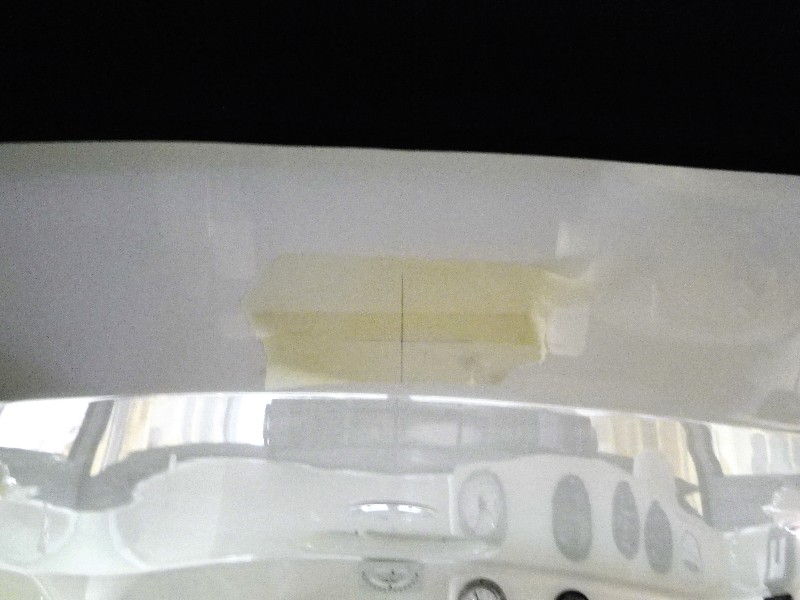

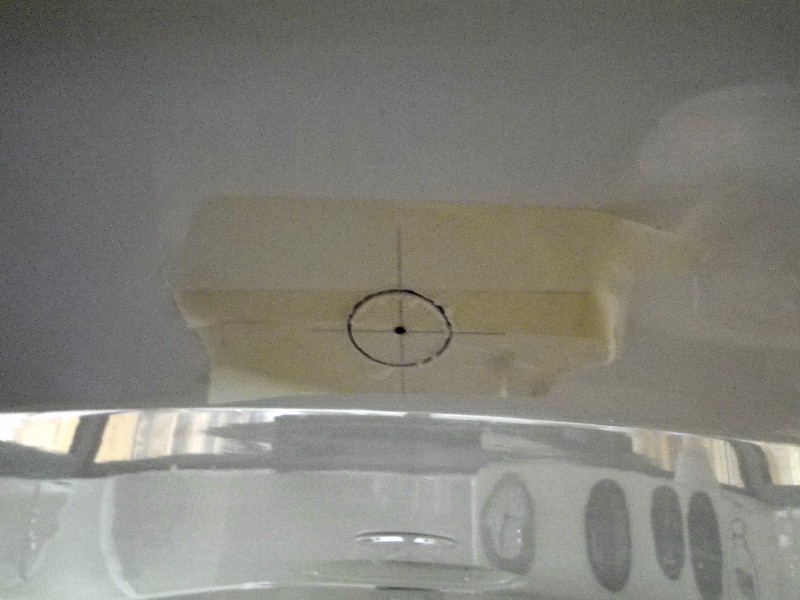

Marked cockpit roof for
installation

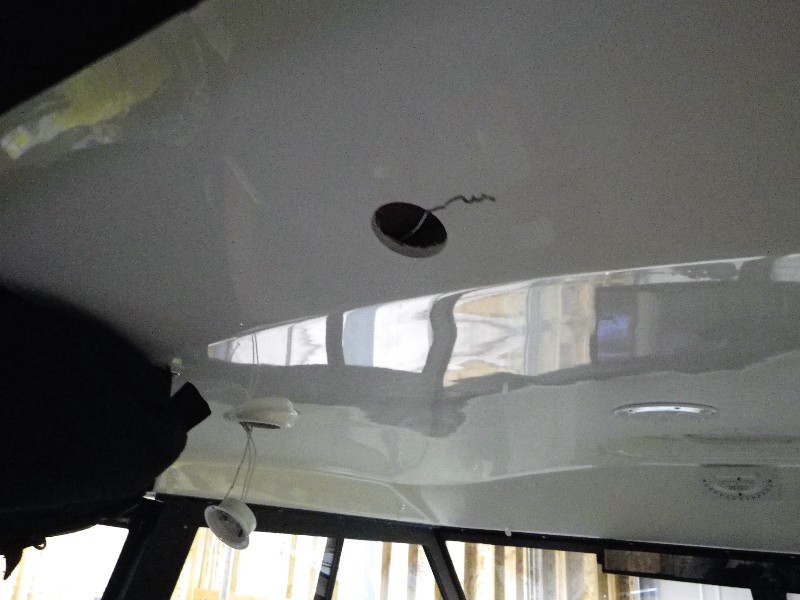

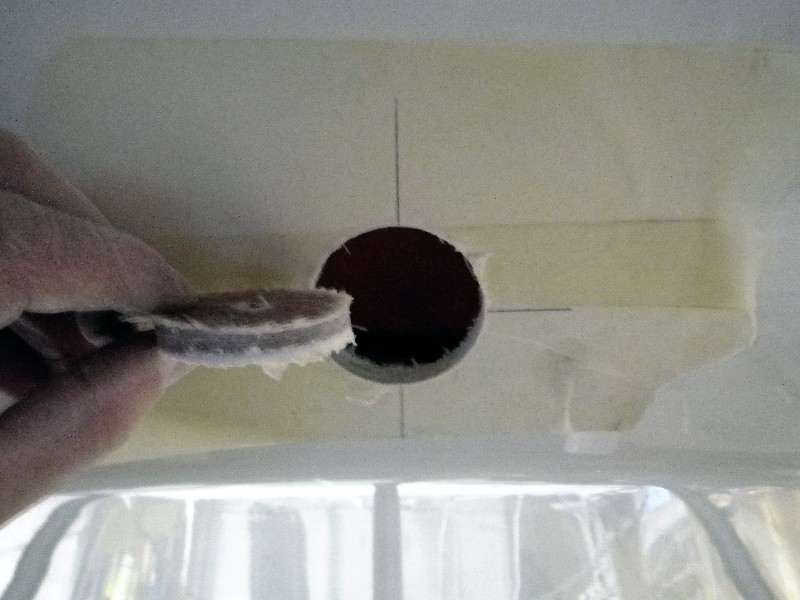

Partially cut with 2 1/8"
hole saw
Thickness of underside
of top
ran a fish line (coat hanger)
wired to existing cockpit
lights

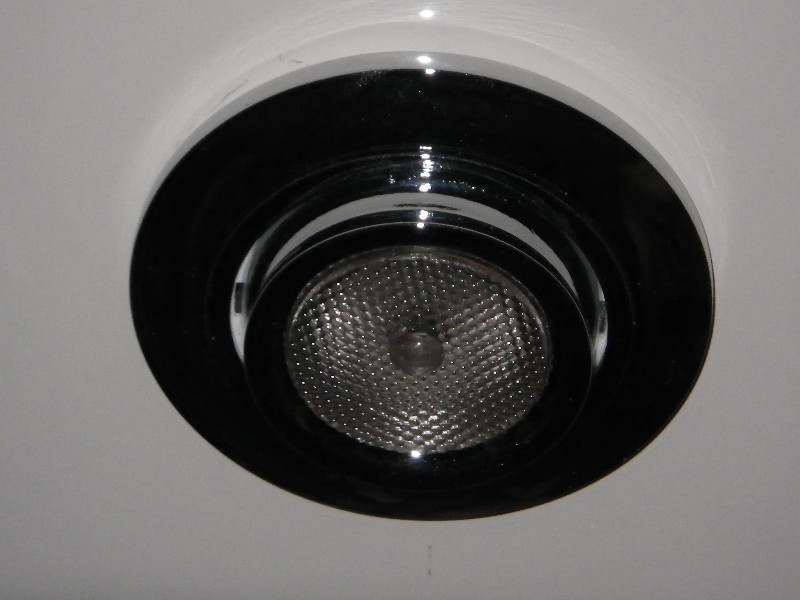

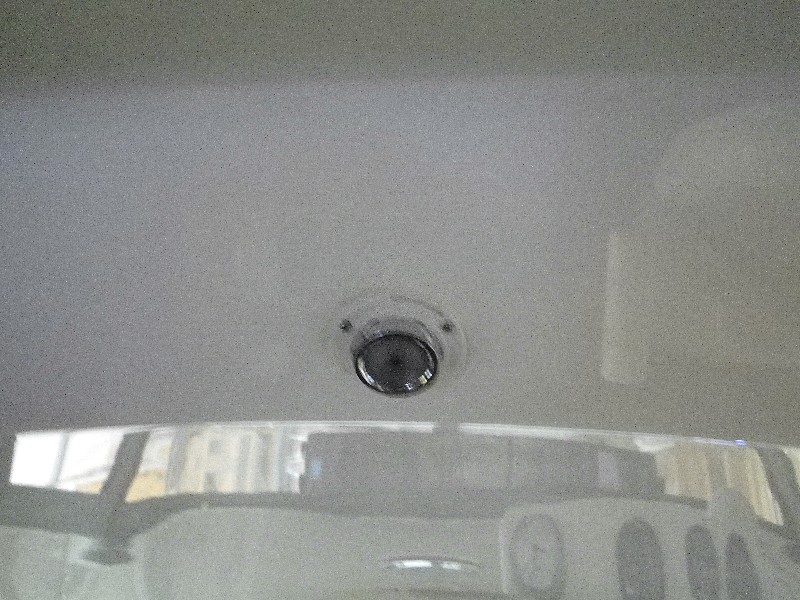

Off

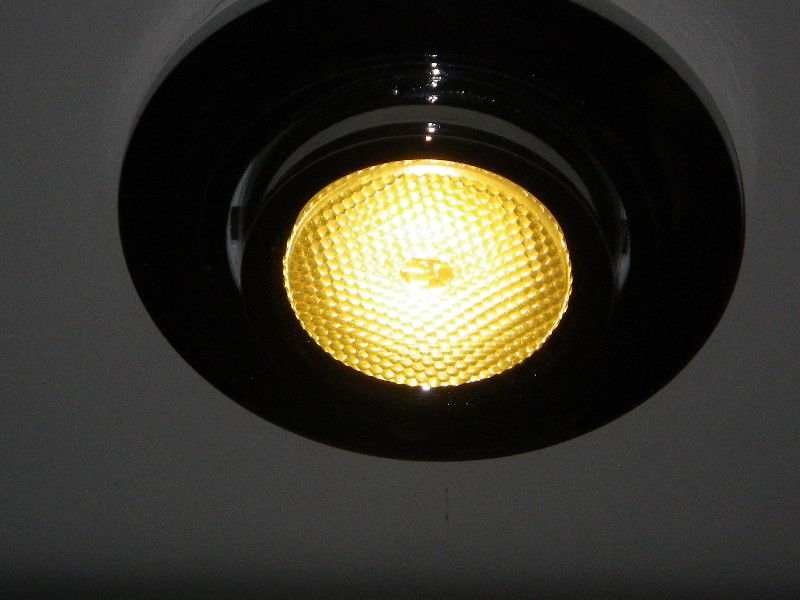

On
Close up
Close up on
dimmable and rotates 120*

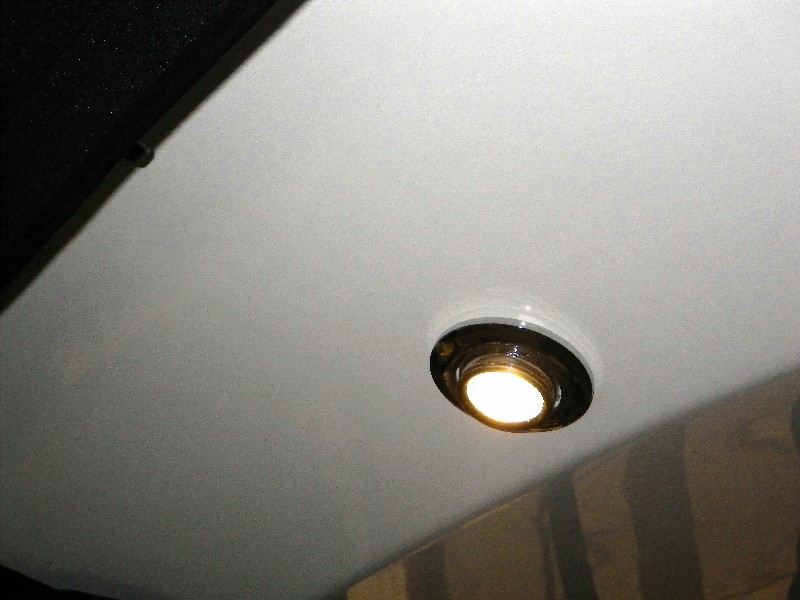

Done 40 mins start to finish
